How It Works

Electrical control panel with a digital monitor displaying data and labeled 'MONITOR', with various colored buttons and switches below, used for monitoring a drilling hole counter.

Our Modular Design Allows For a Wide Range of Manufacturing Quality Control Inspections Tailored To Your Specific Production Needs

  • MON!TOR Plus improves wood panel quality by detecting issues early and ensuring consistent production standards.

  • MON!TOR Plus lowers production costs by reducing waste, minimizing downtime, and optimizing raw material use during wood panel manufacturing.

  • MON!TOR Plus detects system faults by continuously monitoring equipment performance and identifying deviations from normal operating conditions in real time.

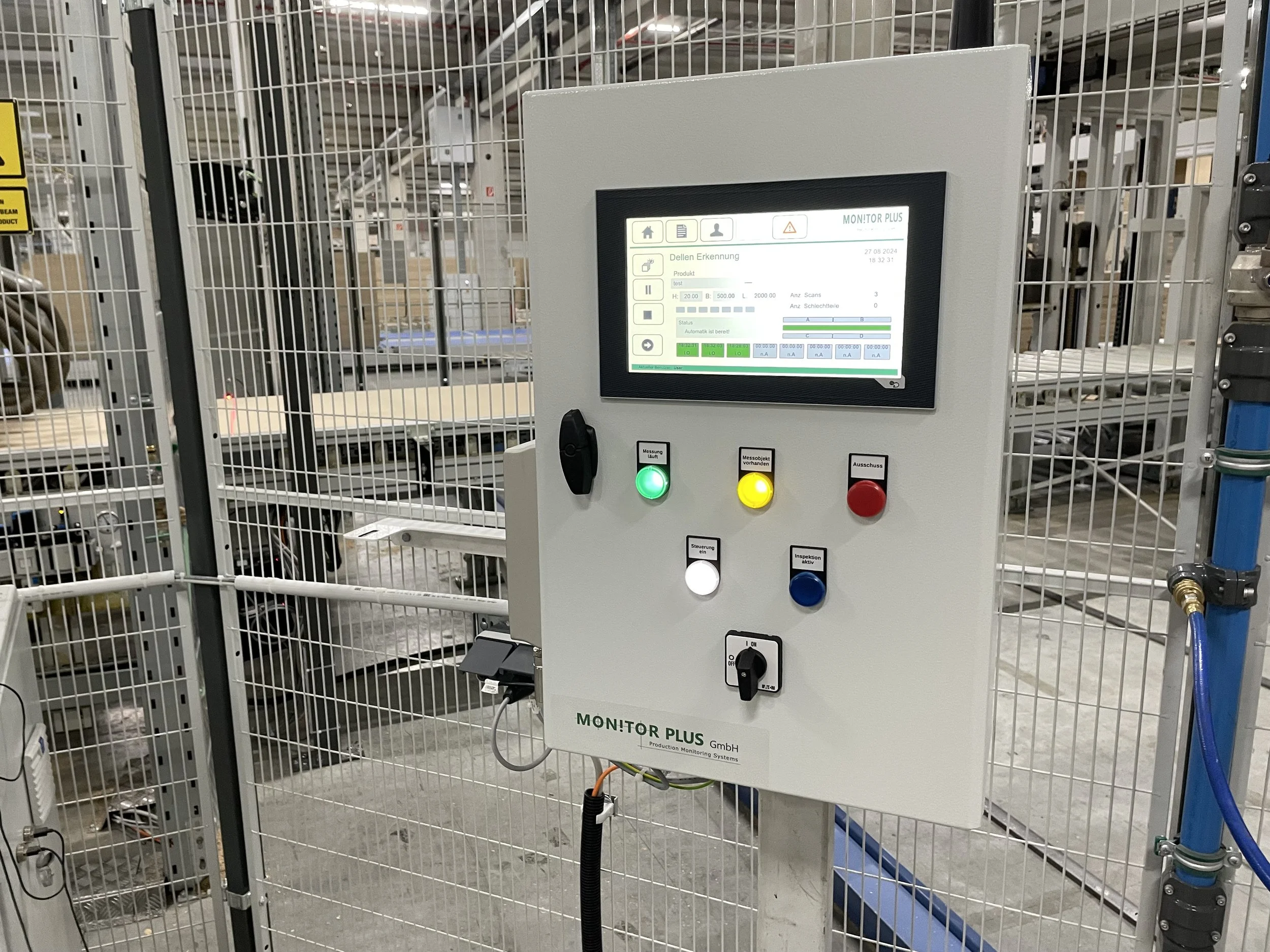

An industrial control panel with a touchscreen display, various colored indicator lights, and switches, mounted on a metal stand in a workshop environment.

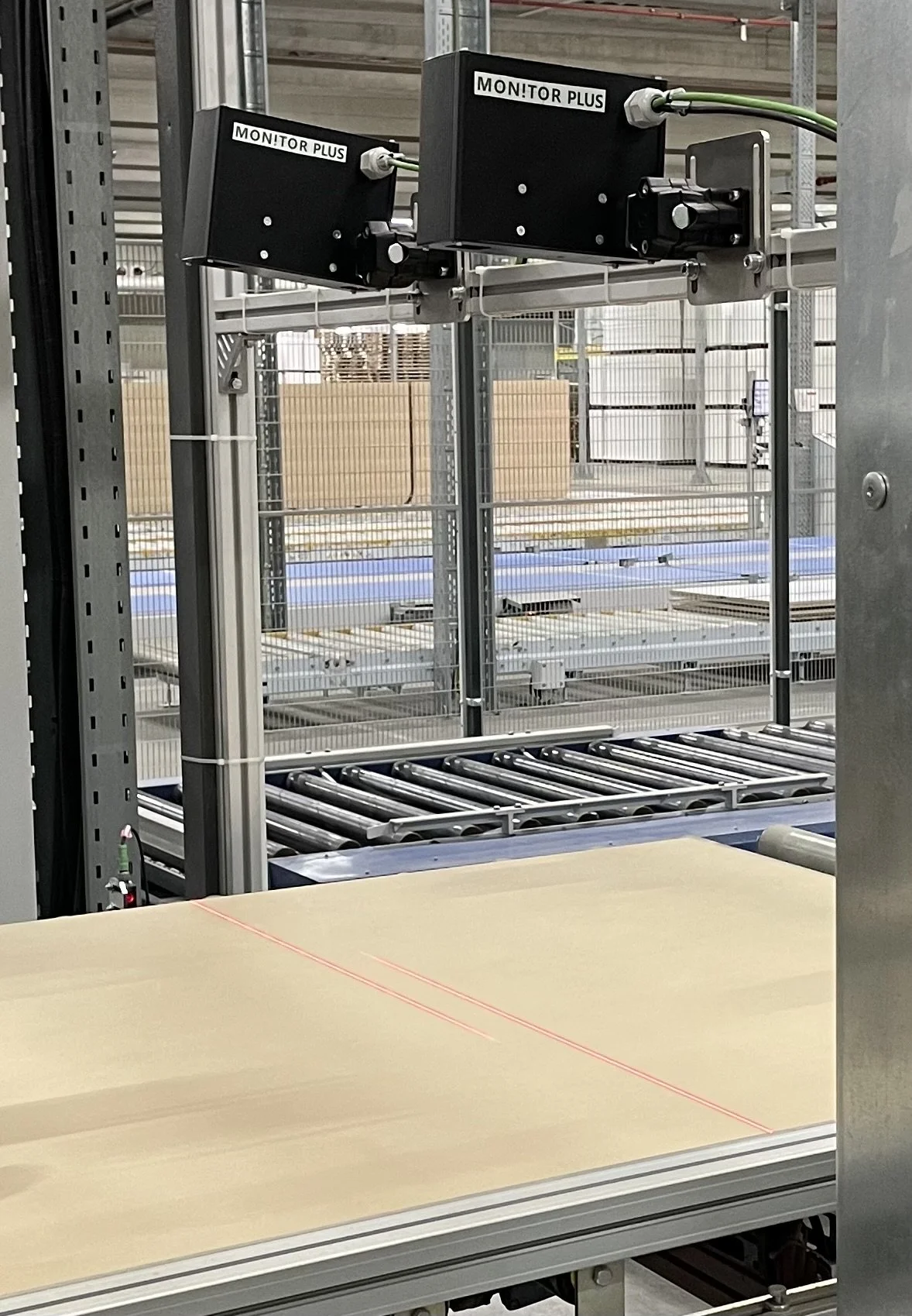

  • Close-up view of an industrial machine part with rollers and metal rods, possibly part of an automated conveyor or manufacturing system.

    Squareness

    -SMART Cameras capture the corners

    -Trigger simultaneously in real-time

    -Calculates the diagonal to confirm Squarness

    -Independent of the position of the panel on the conveyor.

  • Industrial control panel with touchscreen display and various buttons inside a fenced manufacturing area.

    Edge Panel Thickness

    -1, 2 or 4 edge detection

    -Edge profile up to 12 identification properties on each side

    -Length width and thickness

    -Squareness after and in double-end tenoner

    -Log imperfect verification and following log number

    -Tongue and groove verification

  • Three green and yellow electronic devices with knobs, switches, and connectors on a white surface, likely laboratory or communication equipment.

    Moisture

    -Detecting Volume variation

    -Moisture verification

    -Density verification

    -Distance verification

    -Glue detection

    -PRIMER application on foils

    -Detecting additives

    -Rest Liquid detection

  • Industrial data screen showing drill hole counter with 234 holes detected, matching the target; timestamp 14:42:20; sensitivity set to normal; status marked as ready; green and gray data logs with timestamps.

    Drill Hole Counter

    -Displays the number of drill holes found and the target number of drill holes.

    -Three Levels of Sensitivity

    -Display of the last eight readings

    -Compares edge position

    -High speed result calculation, max 200msec

  • Metal frame structure of a conveyor or automation system with linear guide rails and motor components on an industrial workshop floor.

    3 Line Panel Thickness

    -Laser based thickness measurement

    -1000 readings per second

    -Encoder controlled

    -Press Opening following counter

    -Thickness – length and with measurement

    -Warp cup  and bow evaluation

  • Industrial conveyor system with rollers and sensors in a warehouse or manufacturing facility.

    Dent Detection

    -Seamless laser line all width long

    -Dent detection starting at 0.1mm

    -Hole detection starting at 2mm depth

    -High-speed encoder-controlled

    -Warpness – bow and cup measurement

    -Edge completeness software embedded

    -Top layer verification

    -Position follwing controll

Get In Touch

Learn more about how MONiTOR can integrate into your current system
